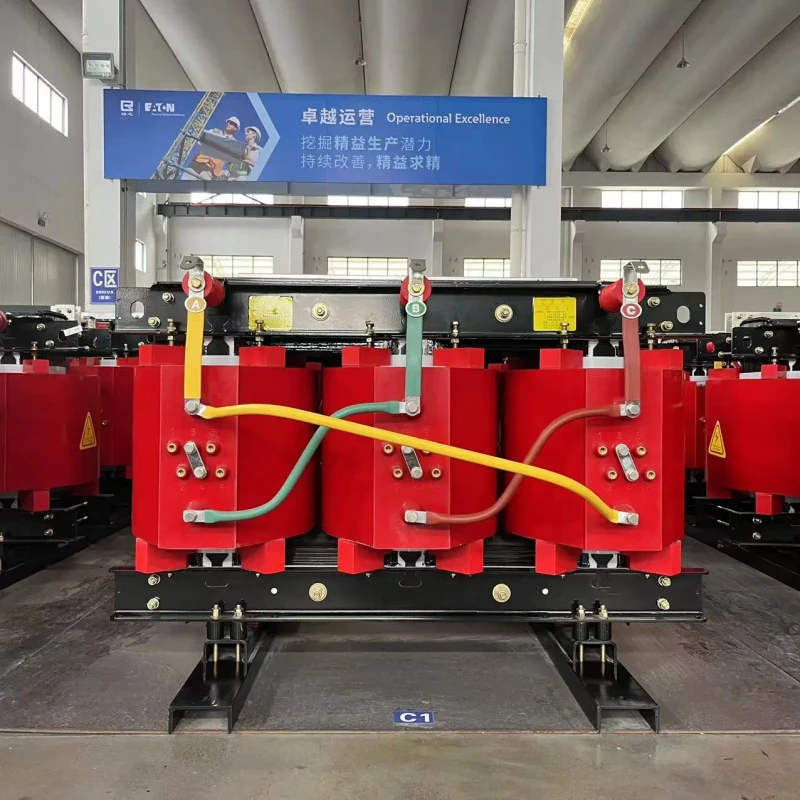

800/500kVA 1600kVA Dry Type Power Transformer 480v 220v 13.8kV Step Down 3 Phase Electrical Isolation MV&HV Transformers
$8,300-20,500
/set
Price varies depending on material, logo, quantity and customization requirements.
Quality You Can Trust
Flexible & Scalable Solutions
Customizable Product Options
Comprehensive Specifications
Your Reliable Business Partner
Category:
HV MV LV Switchgear
Introduction
| Input Voltage | 13.8kV | Output Voltage | 480 V, 220 V |
| Frequency | 50 Hz, 60 Hz | Phase | Three |
| Type | Dry Type Transformer | Coil Number | Two Windings |
| Coil Structure | Vacuum Cast Epoxy Resin Coil, Foil Winding (LV), Layer Winding (HV) | Application | Distribution System |
| Rated Capacity | 30kVA-40000kVA (Customizable) | Rated Voltage | HV:6/10/11/13.8/20/33/35kV LV:0.4/0.38/0.415/0.48kV(Customizable) |
| Insulation Class | Class F / Class H (High Temp Resistance) | Winding Material | High Conductivity Copper (Cu) / Aluminum (Al) |
| Enclosure Rating | IP20 / IP23 / IP44 / IP54 (With/Without Enclosure) | Design Standard | IEC 60076/ IEEE / ANSI / CE / ISO |
| Vector Group | Dyn11 / Dyn5 / Yyn0 / Yd11 (Customizable) | Short-circuit Impedance | 4.0% / 6.0% / 8.0% (Optional) |
| Core Material | High Permeability CRGO / Amorphous Alloy | Cooling Method | AN/AF(Automatic Temperature Control System) |
We are a professional manufacturer and supplier, dedicated to maintaining consistent quality and establishing long-term partnerships with clients worldwide.
Our mission is to provide high-quality products and reliable service. We are committed to offering the following advantages:
- Stable production system ensuring consistent quality, dependable supply, and standardized manufacturing management;
- Strict quality control covering material selection, processing, surface finishing, and final packaging;
- Variety of products and specifications to meet diverse project requirements and application scenarios;
- OEM & customization support based on drawings, samples, or specific technical requirements;
- Flexible packaging solutions to ensure safe handling and transportation of products;
- Continuous improvement in products and services to better support customers in different markets.
If you are interested in our products, please feel free to contact us. We look forward to establishing long-term and mutually beneficial cooperation with you.
