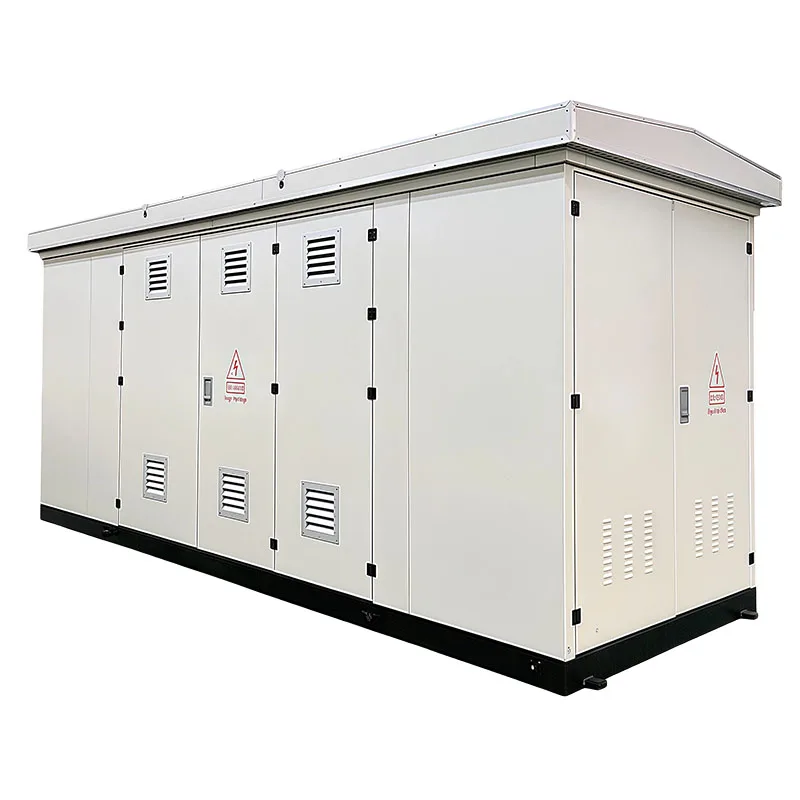

Customized Solar Outdoor Compact Substation Customizable Medium Voltage Substation 12kV 24kV 36kV
$1,300-4,500
/piece
Price varies depending on material, logo, quantity and customization requirements.
Quality You Can Trust
Flexible & Scalable Solutions
Customizable Product Options
Comprehensive Specifications
Your Reliable Business Partner
Category:
Compact Substation
Introduction
| Rated Voltage | 10 kV, 12 kV, 24 kV, 35 kV, 36 kV | Rated Current | 3150 |
| Frequency | 50 Hz, 60 Hz | Application | Power Distribution, Electric Power Transmission, Indoor |
| IP Level | IP65 | Material | Stainless Steel, Aluminium Zinc Coated Plate |
| Size | 3500mm*1500mm*2200mm(137.80in*59.06in*86.61in) | Rated Capacity(Oil-immersed Type) | 50~2500kVA |
| Rated Capacity(Dry Type) | 30~2000kVA | Connection Group | Dyn11 (Mainstream), Yyn0 |
| Short-time Withstand Current | 16kA/2s, 20kA/2s, 25kA/3s | Peak Withstand Current | 40kA, 50kA, 63kA |
| Lightning Impulse Withstand Voltage | To Earth/Phases: 75kV, 95kV Isolation: 85kV, 110kV | Power-frequency Withstand Voltage | HV: 42kV/1min, LV: 5kV/1min |
| Protection Scheme | LBS+Fuse, VCB | Altitude | ≤ 1000m |
| Seismic Resistance Grade | Grade 7 (Standard) |
We are a professional manufacturer and supplier, dedicated to maintaining consistent quality and establishing long-term partnerships with clients worldwide.
Our mission is to provide high-quality products and reliable service. We are committed to offering the following advantages:
- Stable production system ensuring consistent quality, dependable supply, and standardized manufacturing management;
- Strict quality control covering material selection, processing, surface finishing, and final packaging;
- Variety of products and specifications to meet diverse project requirements and application scenarios;
- OEM & customization support based on drawings, samples, or specific technical requirements;
- Flexible packaging solutions to ensure safe handling and transportation of products;
- Continuous improvement in products and services to better support customers in different markets.
If you are interested in our products, please feel free to contact us. We look forward to establishing long-term and mutually beneficial cooperation with you.
