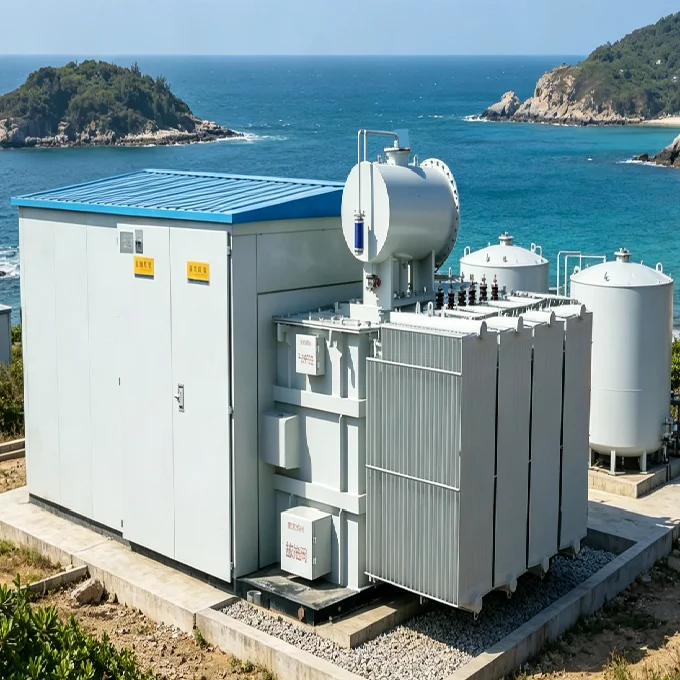

Substation Compact Substation Metal Kiosk and Low Voltage Distribution Board Medium Voltage Switchgear ZBK36001
Our website showcases only a selection of our products. If you have other requirements or can't find the right product, please feel free to contact our customer service team. We are here to assist you!
Rated Voltage 10 kV, 12 kV, 24 kV, 35 kV, 36 kV Rated Current 3150 Frequency 50 Hz, 60 Hz Application Power Distribution, High Voltage, Electric Power Transmission, Indoor IP Level IP53 Material Aluminium Zinc Coated Plate, Stainless Steel Size 3500mm*1500mm*2200mm(137.80in*59.06in*86.61in) Rated Capacity(Oil-immersed Type) 50~2500kVA Rated Capacity(Dry Type) 30~2000kVA Connection Group Dyn11 (Mainstream), Yyn0 Short-time […]
Introduction
| Rated Voltage | 10 kV, 12 kV, 24 kV, 35 kV, 36 kV | Rated Current | 3150 |
| Frequency | 50 Hz, 60 Hz | Application | Power Distribution, High Voltage, Electric Power Transmission, Indoor |
| IP Level | IP53 | Material | Aluminium Zinc Coated Plate, Stainless Steel |
| Size | 3500mm*1500mm*2200mm(137.80in*59.06in*86.61in) | Rated Capacity(Oil-immersed Type) | 50~2500kVA |
| Rated Capacity(Dry Type) | 30~2000kVA | Connection Group | Dyn11 (Mainstream), Yyn0 |
| Short-time Withstand Current | 16kA/2s, 20kA/2s, 25kA/3s | Peak Withstand Current | 40kA, 50kA, 63kA |
| Lightning Impulse Withstand Voltage | To Earth/Phases: 75kV, 95kV Isolation: 85kV, 110kV | Power-frequency Withstand Voltage | HV: 42kV/1min, LV: 5kV/1min |
| Protection Scheme | LBS+Fuse, VCB | Altitude | ≤ 1000m |
| Seismic Resistance Grade | Grade 7 (Standard) |
Our website currently displays only a selection of our transformer products. If you are looking for specific models or need detailed technical information, please feel free to contact us. As a professional transformer supplier, China Loong Transformer Co., Ltd. is committed to providing tailored solutions to meet various application needs. Whether you require oil immersed transformers, dry type transformers, special transformers, or compact substations, our experienced team is ready to assist with product selection, customization, and technical support. Let’s work together to deliver reliable and efficient power solutions that drive your business forward.
