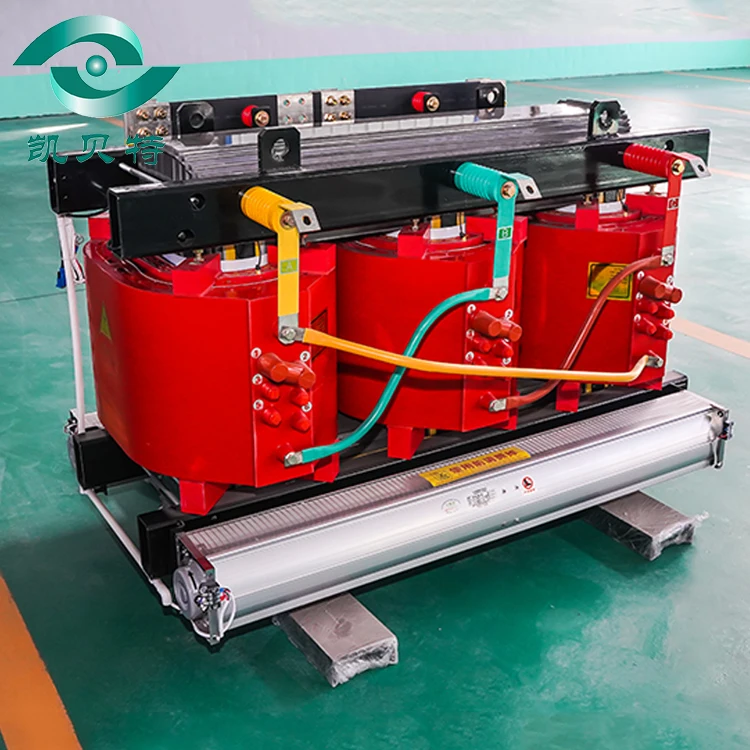

XJPMF 500 KVA Dry type Three Phase Power Transformer 11kV SC(B)14 Dyn11 Low Loss Fully Sealed Construction 50Hz Three Windings
Our website showcases only a selection of our products. If you have other requirements or can't find the right product, please feel free to contact our customer service team. We are here to assist you!
Input Voltage 10 kV, 35 kV, 11 kV Output Voltage 220 V, 380 V, 400 V, 415 V, 110 V Frequency 50 Hz Phase Three Type Dry Type Transformer Coil Number Three Windings Coil Structure Fully Sealed Construction Application Power Transformer Model SC(B)14-500/11 Rated Capacity (kVA) 500 HV/LV 11 kV / 0.4 kV No-load Loss […]
Introduction
| Input Voltage | 10 kV, 35 kV, 11 kV | Output Voltage | 220 V, 380 V, 400 V, 415 V, 110 V |
| Frequency | 50 Hz | Phase | Three |
| Type | Dry Type Transformer | Coil Number | Three Windings |
| Coil Structure | Fully Sealed Construction | Application | Power Transformer |
| Model | SC(B)14-500/11 | Rated Capacity (kVA) | 500 |
| HV/LV | 11 kV / 0.4 kV | No-load Loss (W) | 665 |
| Load Loss (W) | 3850 | Impedance (%) | 4.0 |
| Vector Group | Dyn11 | Core/Winding | Silicon steel, cast resin |
| Standards | IEC 60076-11, GB/T | Application | Hospitals, offices, public buildings |
Our website currently displays only a selection of our transformer products. If you are looking for specific models or need detailed technical information, please feel free to contact us. As a professional transformer supplier, China Loong Transformer Co., Ltd. is committed to providing tailored solutions to meet various application needs. Whether you require oil immersed transformers, dry type transformers, special transformers, or compact substations, our experienced team is ready to assist with product selection, customization, and technical support. Let’s work together to deliver reliable and efficient power solutions that drive your business forward.
